Cheap Portable & Digital B Ultrasound MSLPU26 new

More Views

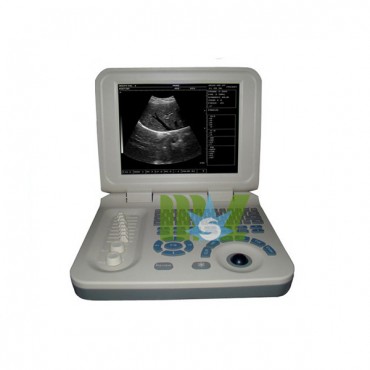

Cheap Portable & Digital B Ultrasound MSLPU26

Be the first to review this product

Cheap Portable& Digital Notebook B ultrasound MSLPU26, be applied effectively in the internal organs of the abdomen and in the gynecology and obstetrics diagnosis in your required lives, measure and calculate the distance, the area, the perimeter, the heart rate, and the pregnant week and so on.

FOB Price: US $ 1,083-1,900 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Thanks for buying Digital Notebook B ultrasound MSLPU26, which is adopted 3.5MHz electronic convex array probes and the image processing technologies. Now we serve cheap notebook model B ultrasound MSLPU26 for you.
B ultrasound MSLPU26, which can be applied effictively in the internal organs of the abdomen and in the gynecology and obstetrics diagnosis in your required lives. Digital Notebook B ultrasound MSLPU26 instrument has a large 256 images memory and may supply the diagnosis with real-time images and may check images one by one, also with the large capacity 128 images permanent storage. It may measure and calculate the distance, the area, the perimeter, the heart rate, and the pregnant week and so on. If you wanna own Digital Notebook B ultrasound MSLPU26 in a cheaper price, let us help you in your requirement.

Filed of application

The instrument mainly applies in the dynamic image diagnosis of the liver, the gallbladder, the spleen, the kidney, the urinary bladder and the pancreatic gland and so on, as well as the gynecology and obstetrics examinations and pregnancy and contraception examination.



Contraindications

The instrument can not be used in the internal organs examinations like stomach, intestines and lungs which contain the gas. The ultrasound diagnosis belongs to the non-cuts image diagnosis with no contraindications or complications in the clinical diagnosis application.



Operating environment

Environment temperature:  +5℃~ +40℃
Relative humidity:  ≤80%
Atmospheric pressure:  700hPa~ 1060hPa
Power supply:  a.c 220V ± 22V, 50Hz ± 1Hz d.c 14V
Using independent net power socket.
Far away highfield, high-intensity magnetic field and high voltage devices.



Main Function

Scan pattern:   electron convex array scanning
Display mode:   B, B/B, 4B, B+M, and M
Image Magnification:   ×2.0
Dynamic range:   0~120dB adjustable.
Focus position:  dynamic digital electron focusing point-by point.
Manu function:   8 types of γ correction, line correlation, frame correlation, point-line correlation, linear interpolation and 16 types of pseudo color processing, etc.
Frequency conversion:   T35R60GZ convex array probe, 2.5MHz/ 3.0MHz/ 3.5MHz/ 4.0MHz/ 5.0MHz
T65R13GZ cavity probe, 5.5 MHz/ 6.0 MHz/ 6.5 MHz/ 7.0 MHz/ 7.5MHz
Measuring function:  Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on.
Annotation function: hospital name, patient’s name, gender and age: 64 body marks (with probe), full-screen character annotation, real-time clock display;
Puncture guide:   The puncture guide line can be displayed under B mode.
Gain control:  8 segments TGC and full gain can be adjusted respectively.
Image polarity:  left/ right, black/ white and up/ down reverse.
Capacity cine loop:  256 consecutive images can be memorized successively when the real-time is displayed.
Image playback:  series playback or check one by one
Permanent storage:   128 images
Output interface:   SVGA video output offers connection to SVGA color display;
PAL video output offers connection to PAL display, video image recorder and image workstation, etc.
USB port.



Main Technical Index

Standard probe:  T35R60GZ convex array:80 array element, R60, frequency 3.5MHz
Selective probe:  T65R13GZ cavity probe:80 array element, R13, frequency 6.5MHz
display:  10.4 inch
gray scale:  256
circumference/ area measured deviation:  ≤20%
Running hours:  ≥8 hours
Battery running time:  ≥1 hour
Input power:  ≤22VA
Main machine power:   about 2.015 kg
Main machine measurement:  300× 245× 60 (L× W× H) (mm3)

Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
