4D LED Black & White Ultrasonic Diagnostic System MSLCU18 new

More Views

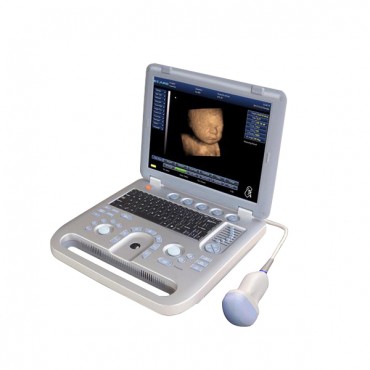

4D LED Black & White Ultrasonic Diagnostic System MSLCU18

Be the first to review this product

Developed 4D LED Full Digital Black & White Ultrasonic Diagnostic System MSLCU18, a high-resolution full digital black-white ultrasonic diagnosis system adopts a general-purpose computer and an embedded operating as well.

FOB Price: US $ 5,546-6,500 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Latest 4D LED Full Digital Black & White Ultrasonic Diagnostic System MSLCU18, which adopts a general-purpose computer and an embedded operating system with the safety and compatibility are greatly improved and the processing rate is exceedingly high. Besides, Pop-up menu and keyboard design can make operation very convenient, and frequently used keys for image scanning are designed on the keyboard.
There are four kinds of probes under the use of Full Digital Black & White Ultrasonic Diagnostic System MSLCU18, which is  offered by MSL, Guangzhou Medsinglong Medical Equipment Co., Ltd. China. Including UT-C-3.5R60 probe, UT- C-3.5R20 probe, UT-L-7.5 and UT-C-6.5R10 probe.
See following details carefully and have a contact with us when necessary please, we can serve you our factory direct LED full digital black & white ultrasonic diagnostic system MSLCU18. If this machine can not meet your requirements, just see the same Digital Ultrasonic Diagnostic System series like MSLPU26, MSLPU32, MSLPU33 and MSLTU02 etc. We are ready serve you.



Optional parts

UT-C-3.5R20 micro-convex-array probe
UT-L-7.5 linear-array probe
UT-C-6.5R10 transvaginal probe
DICOM3.0 protocol
Video printer, laser printer
Mobile trolley
Air captain suitcase
Probe expansion 1*2/1*3
Probe expansion cabling(when the system is
mounted on a mobile trolley)


Probe selection

The system supports convex-array and linear- array probes for different parts. For the best effect, probes should be selected according to the following table:

Body Part Probe Selection

abdomen 2.5-5.0MHz convex-array probe UT-C- 3.5R60
organ 5.0-10.0MHz linear array probe UT-L-7.5
heart 2.0-5.0MHz micro-convex-array probe UT- C-3.5R20
blood vessel 5.0-10.0MHz linear-array probe UT-L-7.5
obstetrics 2.5-5.0MHz convex-array probe UT-C-3.5R60
surgery 5.0-10.0MHz linear-array probe UT-L-7.5
pediatrics 2.5-5.0MHz convex-array probe UT-C-3.5R60
fetus 2.5-5.0MHz volume probe UT-C-3.5R40
transvaginal 5.0-8.0MHz transvaginal probe UT-C-6.5R10

Frequencies of different convex-array and linear-array probes can be conversed. The probe model will be displayed in the information column at the upper part of the screen.



System instruction

× a high-resolution full digital black-white ultrasonic diagnosis system, which supports various linear-array and convex-array (micro-convex-array) probes and has wide application. It adopts advanced digital imaging technology and the working frequency range is 2.0MHz-10.0MHz. These probes can be applied to abdomen, liver, kidney, organella, limbs, heart, etc. The system can be used in obstetrics, gynecology, pediatrics, urinary and organ, etc.

× adopts newly introduced DBF digital beam forming technologies (RDA real-time dynamic aperture imaging; DRA, real-time dynamic sound beam apodization; DRF, real-time point-by-point dynamic reception focusing) and a high-performance full digital central processing module to provide high-quality images.

× With a powerful computer processing platform, MSLCU18 has diverse image processing functions, a humanized operation interface and management system as well as flexible expandability and compatibility.



Full Digital Black& White Ultrasonic Diagnostic System MSLCU18 MSLCU18 has plenty of image processing functions such as controllable frame correlation, gamma calibration, edge enhancement, image smoothing, image turnover (upward, downward, leftward and rightward), histograms, depth rise, factor multiplication, undistorted real-time dynamic PIP, zooming, etc.

× provided with real-time online help function and a navigation system, making the operation more simple; multiple display modes for selection, e.g. B, 2B, 4B, B/M, M for selection; plenty of image presetting functions, making image adjustment more convenient; ultra-high capacity film replay and perfect image filing, browsing and management functions, facilitating selection of the best diagnosis image; perfect measurement methods and powerful measurement software packages, making measurement, calculation and report more complete and convenient.

Probe introduction

UT-C-3.5R60 probe:

MSLCU18 probe is a hand-held convex-array probe, the operation center frequency of which is 2.5/3.5/4.0/5.0 MHz (4 variable frequency; frequency range, 0.8-6.0MHz). In mode B, the probe sector scanning angle is 60 degrees.
The probe can be used in B-M combined mode. This probe is used to examine musculoskeletal system, organellae, intra-abdominal tissue and structures (including gastrointestinal tract, kidneys, bladders, etc.) and detect and evaluate abnormalities of organ parenchyma and functions according to formulated diagnosis standards.
This probe can be also used to evaluate fetal growth and maturity in obstetric diagnosis.

UT-C-3.5R20 probe:

This probe is a hand-held micro-convex-array probe, the operation center frequency of which is 2.0/3.5/4.0/5.0 MHz (4 variable frequency; frequency range, 0.6-6.0MHz). In mode B, the probe sector scanning angle is larger than 100 degrees. The probe can be used in B-M combined mode. This probe is used to examine the heart, organellae, intra-abdominal tissue and structures (including the gastrointestinal tract, kidneys, bladders, etc.) and detect and evaluate abnormalities of organ parenchyma and functions according to formulated diagnosis standards.

UT-L-7.5 probe:

This probe is a hand-held linear-array probe, the operation center frequency of which is 5.0/6.5/7.5/10.0 MHz (4 variable frequency; frequency range, 4.0-12.0MHz). In mode B, the probing depth of the energy transducer exceeds 80mm. The probe can be used in B-M combined mode. This probe is used to examine neonates, the musculoskeletal system, peripheral vessels and organellae (including breasts, thyroid, testicles, etc.) and detect and evaluate abnormalities of organ parenchyma and functions according to formulated diagnosis standards.

UT-C-6.5R10 probe:

This probe is a hand-held transvaginal probe, the operation center frequency of which is 5.0/6.5/7.5/8.0 MHz (4 variable frequency; frequency range, 4.0-10.0MHz). In mode B, the probe sector scanning angle is larger than 160 degrees. The probe can be used in B-M combined mode. This probe is used to examine transvaginal tissue and structures and detect and evaluate abnormalities of organ parenchyma and functions according to formulated diagnosis standards.





Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact [email protected]

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
