High Cost-Effective LED Human Ultrasound Scanner MSLPU27 new

More Views

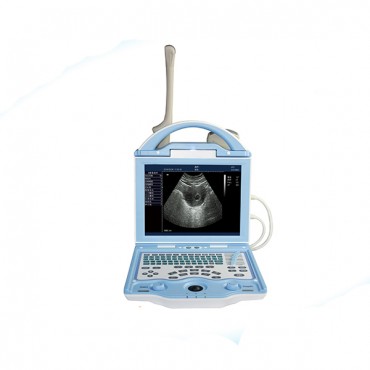

High Cost-Effective LED Human Ultrasound Scanner MSLPU27

Be the first to review this product

High Cost-Effective LED Human Portable Ultrasound Scanner MSLPU27, with high resolution color LED backlight display and high contrast with wide viewing angle, ARM7 embedded control system, FPGA signal processing system and well selected ultrasound hardware system.

FOB Price: US $ 1,450-2,600 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Clinical Diagonostic High Cost-Effective LED Human Ultrasound Scanner MSLPU27, GE Vivid E Portable USG Machine and GE Vscan Ultrasound System, provided by MSL group, Guangzhou Medsinglong Medical Equipment Co., Ltd. China.
Once choosen us to be your Ultrasound Machine Scanner Supplier, we can serve more favorable MSLPU27 things for you in real. You can also get more portable use machine information or Ultrasonic Diagnostic Devices, by us, MSL B Ultrasound Machine, We are looking forward to serving you in good service......

Tech Parameters:

10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
Two probe sockets, auto-identify different optional probe;
Body marks:  total 64 kinds body marks indicating probe position;
Display mode:  B, 2B, 4B, B/M, M;
Adjustable depth:  10 grades, max depth to 236mm;
Gain:  0~127dB;
Contrast:  27~90dB;
Gray scale:  256;
8 steps intelligent TGC;
Frame frequency:  30 frames / second
8 kinds pseudo colors;
Image storage:  4G hard disk to permanently store about 5000 frames images; without loss when power off.
Cine loop:  256 frames;
Puncture guide function with 2 correctable puncture guiding lines  (adjustable angle & position);
the gravel software package with real-time position line measurement
Normal measurement:  distance, perimeter, area, volume, angle, length and area stenosis ratio measurement.
Cardio measurement:  Depth, slope, heart rate, cycle;
Gynecology measurement and analysis:  gynecology general measurement and gynecology report.
OB measurement including:  15 kind of obstetric software, several GA measurement, amniotic fluid index, fetal growth curve                                                        and OB report.
Urology measurement and analysis:   residual urine volume, prostate volume, and urology report .
One-key store:   concise and practical;
One-key review:  fast, practical image review function;
One-key Print;
One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station);
Unique One-key-light keyboard function for black room use;
Display brightness adjustable;
Dual TV output:   PAL/ NTSC, can connect video printer when necessary;
Power supply:  100-240V~ 1.2-0.6A          frequency:  50-60Hz;
Power supply adaptor output:  DC12.8V 3.0A;
Main unit weight:   4.5kg (without accessories);
Main unit dimension:  256×150×326mm (L×W×H);



Main basic configuration:

Main unit:  1pc;
3.5MHz convex probe:  1pc;
Power supply adaptor:  1pc;
Reticle:  1pc;
Two probe sockets



Optional parts:

Optional probes

6.5 MHz multi-frequency trans-vaginal probe  (through vagina)
6.5 MHz micro-convex probe for small animals
7.5 MHz multi-frequency linear probe
7.5 MHz multi-frequency cavity probe (through anus)

Battery charger

Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
trolley
Video printer  (UP-897MD)
Ethernet Switch
