Laptop Veterinary Doppler Ultrasound Scanner MSLVU08 new

More Views

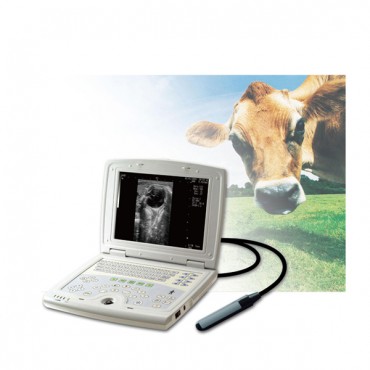

Laptop Veterinary Doppler Ultrasound Scanner MSLVU08

Be the first to review this product

Latest Cheap Enhanced Laptop Veterinary Doppler Ultrasound Scanner MSLVU08, made a well use in both human and vet animals like bovine and sheep.


FOB Price: US $ 1,900-3,500 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Welcome select us, a more than five-year Professional Ultrasound Equipment manufacturer, Guangzhou Medsinglong Medical Equipment Co., Ltd. Chian. Now find New Cheap Enhanced Laptop Veterinary Doppler Ultrasound Scanner MSLVU08 for sale. In order to supply cheap medical equipment with good service in the same Medical level. We are ready supply you Specialized Medical Ultrasound machines. Latest Cheap Enhanced Laptop Veterinary Doppler Ultrasound Scanner MSLVU08 also made a well use in both human and vet animals like bovine and sheep supplied.
Besides, there are Ultrasound machines including: Trolly ultrasound machine, 3D & 4D ultrasound machine, Portable/ Handheld Ultrasound Machines, Home Ultrasound Machine, Veterinary Ultrasound, Color Ultrasound Machine and Digital Ultrasound Machines in differ functions for different person use. Let us help you choose your real suitable one and enhance your lives in need.

Following product MSLVU08 details can be a helper to serve you:



Quick Details

Type:  Doppler Ultrasound Equipment
Brand Name:  MSL Model
Number:  MSLVU08
Gray:  256
Place of Origin:  China (Mainland)
Max scanning depth:   ≥ 17cm:





Specifications

Laptop Veterinary Ultrasound Scanner
1.  High quality and good price.
2.  Vet ultrasound machine
3.  Veterinary portable scanner



Main specification

Probe element:   80 elements 16 channels
Display:   10.4" high resolution color TFT LCD
Scanning mode:   convex, linear

Standard probe:   6.5 MHz multi-frequency linear rectal probe
(frequency conversion scope:   4.0/ 5.0/ 6.5/ 7.5 MHz)

Optional Probe: 4.0 MHz rectal linear probe
(frequency conversion scope: 2.0/ 2.5/ 3.5/ 5.0 MHz)

Optional probe:   3.5 MHz convex multi-frequency probe
(Frequency conversion scope:   2.0/ 2.5/ 3.5/ 5.0 MHz)

Optional probe: 6.5 MHz intra-vaginal frequency conversion probe.
(frequency conversion scope: 4.0/ 5.0/ 6.5/ 7.5 MHz)

Optional probe: 7.5 MHz frequency conversion probe.
(frequency conversion scope: 5.0/ 6.5/ 7.5/ 9.0 MHz)

Optional probe:  5.0 MHz micro-convex frequency conversion probe.
(frequency conversion scope: 3.5/ 4.5/ 5.0/ 5.5 MHz)

Scanning angle:   convex probe 60°, intra-vaginal probe 135°
Body mark: 1.ceneral2.Bovine, 3.Equine, 4. Canine, 5. Feline, 6.cardio
Probe socket:   1 socket, automatically identify the probe

Resolution:  horizontal≤ 2mm, vertical≤ 1mm
Dead zone≤ 5mm (test report actually≤ 3mm)
Max scanning depth:   ≥ 17cm (test report actual ≥ 20cm)

Geometry position precision:  Transversal≤ 10%, Longitudinal≤ 5%
(test report actual ≤ 5%, Longitudinal≤ 5%)

Scanning mode:  B, 2B, 4B, B/ M, M
8 grades depth adjustment under full visual field (8kinds of magnification)
Gain:   0~ 127dB
Dynamic scope:   27~ 90dB, visible & adjustable

Four different angles/ switchable width
Gray:   256
Imaging technique: full digital beam-composite, continuous dynamic focusing,
dynamic aperture
Cine loop:   256 frames
Permanent image storage:   100 frames
TGC control: near field, far field



Image processing:

pre-process  (continuous dynamic focus, dynamic aperture, dynamic filter),
post-process (4 grades gamma correction), frame correlation, black/ white reversal, left/ right reversal, up/ down reversal, edge enhancement, etc.

Depth hoist/ local zooming
Frame frequency:   30 frames/ s



Measurement and analysis:

Normal measurement:  distance, circumference, area (trochoid or elipse), volume, etc.
Obstetric measurement and analysis:  EDD and GA of Bovine, Equine, Ovine, Canine, Feline, camel and goat.
Cardio measurement and analysis: depth, slope, heart rate, cycle
Report:  OB report
Note: name, age, gender, hospital name, time, date, probe type, frequency, focus, frame correlation, gain, dynamic scope, etc.
Battery:  2700 MAh lithium battery (2 PCS) can work for more than 200 min each charge.
Weight of main unit:  2.25kg.
Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.
USB port for flash disk to store images directly and for transferring image to PC
(optional software of case report process center)
Output: PAL/ NTSC
Power supply: 85V~ 242V, 48V~ 62HZ
Energy-saving
8 kinds internal pseudo color



Standard configuration

Main unit:

1 PC 6.5 MHz multi-frequency linear rectal probe
1 PC Probe socket
1 PC USB port

Optional configuration:

6.5 MHz intra-cavity probe
3.5 MHz convex multi-frequency probe
4.0 MHz linear rectal probe
7.5 MHz high frequency linear probe
5.0 MHz micro-convex probe
