LED Veterinary Ultrasound Scanner Full Digital MSLVU18 new

More Views

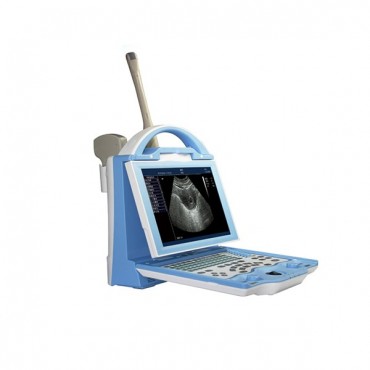

LED Veterinary Ultrasound Scanner Full Digital MSLVU18

Be the first to review this product

Offer Advanced LED Veterinary Ultrasound Scanner Full Digital MSLVU18, applied widely in vet animals like bovine, sheep, and dogs.


FOB Price: US $ 1,539-2,600 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

It our honor for selecting our Specialized Medical Ultrasound Machines, as a more than five-year Professional Ultrasound Equipment manufacturer, Guangzhou Medsinglong Medical Equipment Co.,Ltd. offers you New Cheap Enhanced Portable Veterinary Ultrasound Scanner MSLVU18 for sale. In order to supply cheap medical equipment with good service in the same Medical level. MSL is ready supply you Specialized Medical Ultrasound machines. Latest  Portable Veterinary Ultrasound Scanner MSLVU18 also won honor applied widely in vet animals like bovine, sheep and dogs.
Moreover, We have ranges of Ultrasound machines, including Trolly ultrasound machine, 3D & 4D ultrasound machine, Portable/ Handheld Ultrasound Machines, Home Ultrasound Machine, Veterinary Ultrasound, Color Ultrasound Machine and Digital Ultrasound Machines in differ functions for different range of person use. Let us help you choose suitable Specialized Medical Ultrasound Machines, and enhance your lives in reality.

Technical Parameter

1. Gray scale:   256
2. Monitor:   10.4” LCD
3. Adapter rating:   100-240V~, 1.2-0.6A, 50-60Hz
4. Output of Adapter:   DC12.8V 3.0A
5. Main device rating:   DC12V 3.0A
6. Main Unit Size:   approx. 256 * 150 * 326 (L * M * H, mm)
7. Weight of main unit:   approx. 4.5 kg (excluding accessories)



Primary Functions

1.  Mode conversion function;
2.  M speed conversion function;
3.  Depth range selection function;
4.  Probe switching function;
5.  Compression curve function;
6.  Frequency conversion function;
7.  Frame correlation function;
8.  Edge enhancement function;
9.  Image post-process function;
10.  Image optimization function;
11.  Image freeze/ unfreeze;
12.  Many segments adjustable TGC, adjustment of total gain and dynamic range;
13.  Image storage function;
14.  Image management function;
15.  Image up/ down and left/ right reversal;
16. Angle/ width change function;
17.  Auto time display, case information and image annotation;
18.  Body marks function;
19.  B general measurement of distance, depth, circumference/ area, volume, angle, histogram, profile, stenosis ratio;
20.  OB software package includes 25 obstetric tables about 8 kinds of animals and it can automatically calculate GA and EDC;
21.  M general measurement of depth, slope, heart rate and time;
22.  System preset function;
23.  Transfer image to Network Printer by one-key;
24.  Network print function;
25.  LCD brightness adjustment function;
26.  PAL- NTSC conversion;
27.  Puncture guide function;
28.  Lithotripsy positioning line function;
29.  Cine playback function;
30.  Energy- saving function;
31.  Chinese- English switch function;
32.  Have various reports.



MSLVU18 full digital ultrasonic diagnostic instruments (Vet) are composed of main unit, probe etc.

System Configuration

Typical configuration

1. Main unit:  1 unit
2. 6.5 MHz animal transrectal linear array probe 1 PC
3. Power adapte:  1 PC



Optional parts

1. 3.5 MHz convex array probe
2. 3.5 MHz linear array loin probe
3. 4.0 MHz convex array transrectal probe
4. 6.5 MHz micro-convex probe
5. 7.5 MHz high frequency linear array probe
6. Video recorder
7. Foot switch
8. Internal battery
9. Charger



Operation Condition

4.1 Power supply
Adapter rating:   100-240V~, 1.2-0.6A, 50-60Hz
Adapter model:   BJE01-40-001M
Output of Adapter:   DC12.8V 3.0A
Main device rating:   DC12V 3.0A

4.2 Operation Environment
Ambient temperature:   10℃- 40℃
Relative humidity:   30%- 75%  (without condensation)
Atmospheric pressure:   700hPa-1060hPa
Altitude:   < 2000 m
Overvoltage:   Overvoltage CategoryⅡ
Pollution degree:   2

4.3 Storage and Transport
Ambient temperature:    -20℃- 55℃
Relative humidity:    30%- 93%   (without condensation)
Atmospheric pressure:    700hPa- 1060hPa.





Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
