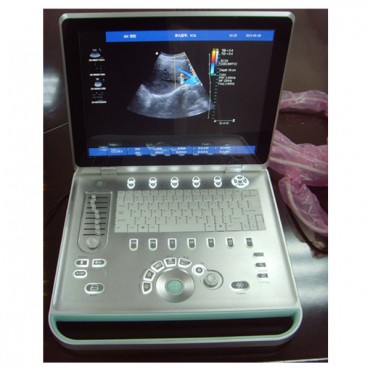

The 2015 Popular Laptop 2d Color Doppler Ultrasound Machine-MSLCU12, Affordable Compact Excellent Popular Laptop 2d color doppler ultrasound machine-MSLCU12 is a compact color doppler ultasound system with various functions and applications and only weight 7KG. The high image quality and simple operation can help doctors perform and clinical exam, such as abdomen, smallparts, OB/GYN, cardiac, ect.
The 2015 Newest Popular Laptop 2D imaging and M-type parameters
1) Gray scale≥ 256
2) Gain adjustment: distance from gain compensation ≥ 8 segments
3) 2D scanning rate: full-field, 18cm depth, rate of scan frame : ≥ 30 frames/ sec;
4) Scanning depth: ≥ 30cm
5)The image playback reproduce: ≥ 50 frames
6) Manual visualization adjustable focus ≥ 4 segments
7) Display: B/ M, B/ D, B/ CD B/ D/ CD can be displayed on the same screen, and the size of the display range of the M-type and PWD image are adjustable
8) Dynamic and static images can be zoomed promise and intelligently
9) Original data movie playback, dynamic video> 10 minutes
10) Can be equipped with composite imaging
11) Preset conditions can be arbitrary according to users’ different habits preset optimized image check conditions for the different organs of checks to reduce regulation and commonly required in the operation of external regulation and portfolio adjustment
1) Display Mode: speed display, energy display
2) Color scanning rate: 18cm depth, scan range is 85 ° angle, color full-field, rate of scan frame ≥ 10 frames/sec
3) Color enhancements: color Doppler energy diagram, direction speed diagram
4) Display position adjustment: interested range of linear array scanning : -20 ° - +20 °
5) Display control: up/ down, left/ right flip, color contrast, black-and-white and color contrast, zero movement
6) Have pseudo-color function
Spectrum Doppler imaging parameters:
1) Spectrum Doppler mode: pulse Doppler PWD, optional continuous Doppler CWD
2) Highest measuring flow rate: the highest measuring flow rate of unidirectional pulsed Doppler ≥ 6 m/s; the continuous Doppler unidirectional highest measurement flow rate ≥ 15 m/s
3) PWD lowest measuring flow rate: ≤ 5mm/ s (not noise signals)
4) Spectrum has functions which can automatically envelope measuring and calculation
5) PWD and CWD image can be frozen for movie playback
6) Sample volume width and position adjustment : 0.5 - 20mm graded adjustment
7) Zero mobile: ≥ level 6
8) Reverse Display control: with
9) Have the function of Doppler sampling then correct angle
10) Display Control: Reverse Display (up and down, left and right), scanning angle three adjustable, local amplification (steeples smart zoom)
1) Probe connector: 1
2) Broadband frequency probe technology, 2D and Doppler can use different imaging frequency
3) B/ D use either: B/ PWD, B/ CWD, B/ CD/ PWD display simultaneous
4) Linear probe: Electronic broadband frequency probe, the frequency range of 5 - 12MHz
5) Convex array probe: Electronic broadband frequency probe, the frequency range is 2 - 5MHz
Measurement and calculation:
1) General measurement: distance, perimeter, area, slope, heart rate, pressure, residual urine, RI, PI, flow rate, etc.
2) Obstetrics and gynecology-specific measurement software: fetal gestational age, pre-production period, estimate fetal weight, multiple measurements were averaged, S/ D ratio
3) Vascular measurement, analysis calculation and reporting
4) Spectral Doppler analysis and calculation software
5) Heart function, vascular measurement analysis software: ejection fraction (EF), left ventricular volume, cardiac output, the amount of (CO), pressure drop half time (PHT) MTPG, Qp / Qs, velocity integral body surface area , ICA / CCA diameter ratio, narrow percentage measuring calculation functions, etc.
6) Measurement parameters can be edited , added, deleted customize if need.
Picture archiving and management specifications
1) With the function of storaging dynamic and static images in real-time internal hard disk, the host built-in hard disk 320G.
2) Have images online clipboard function: real-time scanning, only one-button operation, can store the dynamic and static ultrasound images in the clipboard which on the one side of the screen, can be took out to compare and observe.
3) The brightness, contrast, Doppler baseline sampling angle for offline playback of dynamic and static image can be adjusted, and images can be converted to avi, tif, Bmp and other common format (standard)
4) With USB interface, S-VIDEO, VGA, network transmission image interface etc.
5) With state-of-the-art, convenient direct network, real-time image can be exchanged, storage and played back
