Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17 new

More Views

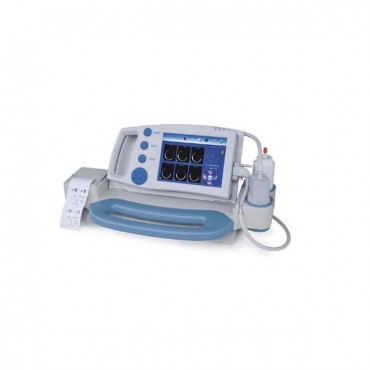

Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17

Be the first to review this product

Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17 For Sale. The Palm Bladder Scanner is a medical device with high performance combined with B-mode ultra-modern technology and computer technology. Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17 consists of host and probe, it can speedily complete the detection of bladder area through scan of probe connected with the device, and transmit B ultrasound echo signal detected to embedded computer system after processing before computer identify the edge of image, volume calculation, and display relative information through LCD or built-in printer before achieve the examination of patient bladder and give you an effective comment in time during patient bladder treatment.




FOB Price: US $ 3,269-4,500 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17 For Sale. The Palm Bladder Scanner is a medical device with high performance combined with B-mode ultra-modern technology and computer technology. Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17 consists of host and probe, it can speedily complete the detection of bladder area through scan of probe connected with the device, and transmit B ultrasound echo signal detected to embedded computer system after processing before computer identify the edge of image, volume calculation, and display relative information through LCD or built-in printer before achieve the examination of patient bladder and give you an effective comment in time during patient bladder treatment.

MSLPU17 Feature:

-Light weight, easy to carry
-8.0 inch TFT color LCD big screen
-Friendly software interface
-Simple operation flow
-Powerful functions
-Can store and review image and data of patients
-A mass storage volume
-Measurement data accurate
-The USB interface, can send measure report uploaded to the PC or Internet
-External printers, print directly measured results
-System operating software can upgrade through internet
-Lithium battery inside, ensure anytime use
-Never need calibration and never need pay more fee after buy

Specification:

1. Transducer freq:  2.6MHZ
2. Scan method:  Mechanical scan
3. Sway angle:  120°± 2°
4. Rotating angle: 180°± 2°
5. Scan depth:  ≥ 140 mm;
6. Display screen:  8.0” TFT color LCD;
7. Power supply for the device:  internal battery
8. Battery control:   capacity instruction and alarm for lower power
9. Recharge device:
   Power adapter:
   Input voltage:  ~ 220V± 10%;
   Charger:
   Output voltage: 8.4V± 0.1V
10.USB interface:  for saving data and upgrade software;
11. Serial interface:  for printer
12. Printer:  for printing micro characters, graphic and image
13. Screen display:  6 pieces of cross-section ultrasound image, measurement result, real-time date, time and hospital name.
14. Patient case record:  100 pieces
15. Patient ID: 12 digits
16. Max. measurement:   999ml;
17. Measurement difference:  V± 25%  (when volume value V≤150ml),V±15%  (when volume value 150ml≤V≤999ml)
18. Measurement methods:  After pre-scan, the measurement will be automatically down after press “scan” key for one time.
19. Selection of measurement location:  A directive for detection of location will guide you to the object zone before effective measurement while you make measurement.
20. Gender: male and female
21. Language of interface: English
22. Dimension: 300× 210× 50m (scanner), 320× 180× 65mm (box)
23. Weight: 1.8 Kg (net), 2.5Kg (yotal)



Character: precision、safety、operating easily

•Eximious accuracy (double scan module)
•Bladder position advance scan system
•Display bladder figure
•Easy to master, simple three operation steps
•On the safe side, the technology validating repeatedly
•Compute the bladder capability automatically (milliliter reading)
•Display realtime bladder image and position in-phase
•Configure USB interface


What is portable bladder ultrasound scanner?

We produced Special Price Hospital Portable Ultrasound Bladder Scanner CE Approved-MSLPU17, the portable bladder ultrasound scanner is a non-intruded device, using advanced three-dimensional ultrasound patent technology. Through the ultrasonic echo, the machine can distinguish between bladder and the organization around bladder. Then the machine can mensurate bladder volume and remainder urine quantity.
You only need to put the probe to the connection of phalange, then press the scanner key, the machine can compute bladder capacity automatically and display on the crystal screen. It also can print the capacity gained by scanner through the printer of the machine’s go-cart easily.
MSLPU17 has the character of handiness, precision,easy-using.


The usage of protable bladder ultrasound scanner

The machine can predict whether patent has the need of transmiting the urine, reduce the times of transmiting the urine, then can decrease the infection risk.
•Diagnose if the catheter is blocked.
•Observe if the cystic enginery is normal.
•During the cystic function healing training, make sure the timetable of excluding urine empty.
•Make sure the rest urine quantity of the prostate hyperplasia patent



MSLPU17 is widely used in hospital:

·surgery
·hocus section
·ICU
·urine section
·women and lay section
·orthopedics
·nerve medicine
·child section
·healing section
-MSLPU17’s latent application area

appertain area
·Uric incontinence guide
·SCI/MS
·Mentality healing institution
·Resthome

Family tend
·SCI/MS
·Community medical center
·Family、community doctor



Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
