Wholesale LED Screen Laptop Ultrasound Scanner MSLPU24 new

More Views

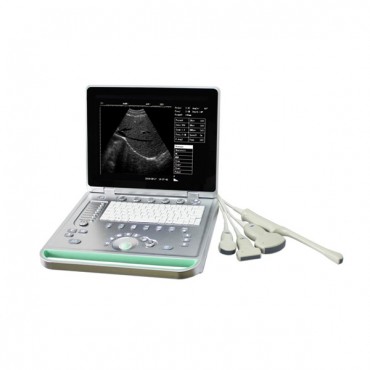

Wholesale LED Screen Laptop Ultrasound Scanner MSLPU24

Be the first to review this product

Cost-Effective 3D Laptop Ultrasound Machine MSLPU24, which is under features of high clear image and cost-effective quality, a Complete Led Screen Laptop Ultrasound Machine.


FOB Price: US $ 1,266-2,500 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Our Led Screen Laptop Ultrasound Machine/ Portable Ultrasound Scanner MSLPU24, which is B ultrasound diagnostic system series with  features of good quality, high clear image and cost-effective, a Complete Led Screen Laptop Ultrasound Machine as well and offered by Guangzhou Medsinglong Medical Equipment Co., Ltd. China. Of which only for US$ 1,300-2,000/ Set.

Following to help you get more informations:



MSLPU24 Quick Details

Cheap and more Cost-Effevtive portable ultrasound machine

1. 15 inch LCD screen
2. Probe: 3.5 mHz convex
3. full digital
4. laptop, pretty and light



1. Product Specifications

MSLPU24 LED screen Digital Ultrasound ultrasound machine & Trolley ultrasound scanner for sales

15 inch LCD screen
Full digital imaging technology, crystal-clear Image
Pretty and light
8 segment TGC
Broadband multi-frequency probes
2 probe connector
Silica gel backlight gravure laser keyboard
USB flash disk large volume image storage
Cine loop
Built-in battery (can work more than 5 hours)
High Cost-effective



2. Specification of Cheap & Effective portable ultrasound machine MSLPU24

* Display size:  15 inch LCD screen
* Working frequency:  2.0 MHz ~ 10 MHz
* Display mode:  B, B + B, B + M, M, 4B
* Scanning range:  Conve x array 60°~ 150°
* Amplification factor:  1.0, 1.2, 1.5, 2.0
* Gain control: 8 segments TGC and overall gain can be adjusted respectively
* Image processing:   8γ corrections, frame correlation, point correlation, line correlation, digital filtering



Digital edge enhancement and pseudo color processing, etc

* Image gray-scale:  256 levels
* Scanning line number:  512 lines/ frame
* Frame rate:  30 frames/ second
* Digital scanning conversion:  512 ~ 512 × 8 bits
* Memory:  USB flash disk large volume image storage
* Conventional measurements:  distance, perimeter, area, volume
* Obstetric measurement:  gestational weeks ( BPD, GS, CRL, FL, HL, OFD, TTD, AC ).



 Expected date of confinement and fetus weight, etc.

*  Report function:  auto make report
*  Report function:  auto make report
*  Built-in battery capacity:  can work more than 5 hours-Output interface: USB port, video.
*  Overall size:  362 mm × 340 mm × 60 mm
*  Total weight:  4 Kg ( with battery )



3. Standard configuration of the portable ultrasound

    One host
    One convex probe
    One aluminum trunk



4. Optional accessories of the portable ultrasound

     Transvaginal, linear, micro-convex probe;
     Biopsy;  Trolley;  Printer.



Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
