Portable Ophthalmic Ultrasound Diagnostic B-sacn For Sale MSLPU22 new

More Views

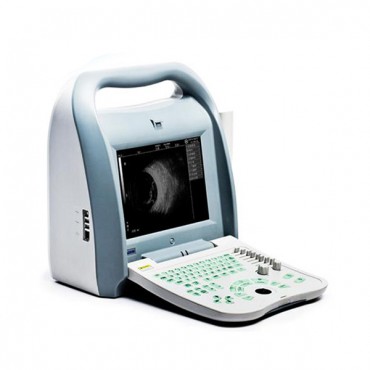

Portable Ophthalmic Ultrasound Diagnostic B-sacn For Sale MSLPU22

Be the first to review this product

Full Digital Portable Ophthalmic Ultrasound Diagnostic A/B Ultrasound Scanner, as well as eitht pseudo colors imaging software MSLPU22.

FOB Price: US $ 4,726-5,600 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Thank you for purchasing MSLPU22 series Ophthalmological Ultrasonic measuring Instruments, which is offered by MSL, MSLPU22, Guangzhou Medsinglong Medical Equipment Co., Ltd. China.
Belong to one kind of Ophthalmic Ultrasound Diagnostic Machine-MSLPU22, applied full Digital Portable Ophthalmic Ultrasound Diagnostic A/B Ultrasound Scanner, with eight pseudo colors imaging software MSLPU22 serve you. If this can not meet your requirement, just see other ultrasounds, such as home ultrasound machine, 3d ultrasound machine, handheld ultrasound, veterinary ultrasound, color ultrasound etc. we can offer what your requirment.

Technical Specifications

10.4" high resolution color LCD, LED backlight, image clear and exquisite.
Back-lit silica gel keyboard, photoelectric trackball and encoder, easy to operate.Menu operation,
Language:  Chinese/ English.
Display mode: B, B/ B, 4B, B/ A, A.
Report function:  print screen, IOL report, case report with picture, etc.
Eight Pseudo colors  (incl.B/W).
Cine loop:  256 frames, can measure the playback image.
Build-in D disk:   4GB, massively save data, images, reports, etc.
Two USB ports, support large capacity U disk (support document management/software upgrades/one-key storage), and laser printer directly print various images and reports.
DICOM3.0 network port, realizing network transmission easily.
IOL Formula:   SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term save 100 groups of measurement results of A scan.



General parameters:

Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system, make the machine more reliable.
Menu operation, Language: Chinese/ English.
Double probe sockets:   A mode probe: 10MHz, imported probe with fixation light; B mode probe: 10MHz, imported transducer.
Preset items:
a)  System setting (hospital name, mode selection, date/time and its format, probe protection time, help, keyboard sound etc.)
b)  IOL setting
c)  Network setting, DICOM3.0
d)  Password setting
e)  Software upgrade

Gains range:  0--120dB.
Dynamic range:  30-100dB, visual and adjustable.
Gray:   256.
Intelligent TGC adjustment:   8 segments.
Build-in D disk:   4GB, save mass data, images, reports, etc.
Report function:   print screen, IOL report, case report with picture, etc.
Dual-mode TV output:   PAL/ NTSC, connecting to video recorder and ultrasonic working station.
                                         DICOM3.0 network port, realizing network transmission easily.
Power supply :   AC110/ 230V -15%~ +10%  (self-adaption supply voltage) 60/ 50Hz ± 1Hz.
Net weight:   8kg.
Dimension:   400x186x385mm  (length x width x height).

Measuring range:  15-35 mm.
Measuring accuracy:   ±0.02 mm.
Measuring parameter:  ACD, LENS, body Length, axial length.
Eye mode:  normal/ aphakia/ dense cataract/ various IOL eyes.
Measuring Mode:  Contact and Immersion, automatic and manual.
Calculation:  std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
Measurement methods:   A single-point measurement (under A mode); five-point measurement (under A mode).
IOL Formula:   SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term save 100 groups of measurement results of A scan.

A single point measurement
Magnification:   ×1.0, ×2.0, x4.0.
Display Depth:  0~ 36 mm, delayed depth:  0--36 mm.

B scan parameter:
Scan mode:  High accuracy stepping motor drive sector scan.
Scan Angle:  53°.
Display Depth:  0~ 88 mm  (incl.delayed depth).
Delayed depth:  25--32 mm.
Gray:  256.
Frame frequency:  30 frames/ s.
depth seletion:  8.
Frame correlation:  4.
Edge enhancement:  4.
Compression Curve:  8.
Post-processing:  8.
Eight Pseudo colors:  8 kinds (incl. B/ W).
100 frames permanent image storage.
Cine loop:  256 frames, can measure the playback image.

Disk management.
General Measurement:multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method), volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.



Standard configuration:

Main unit:   1 pc
10MHz mechanical sector B probe:   1 pc
A probe, 10MHz :   1 pc
Foot switch:   1 pc
Calibration cup:   1 pc



Optional configuration:

Eye cup for immersion mode
Trolley
Video recorder
Laser printer

Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.
