Full-Screen Input Color Ultrasound Equipment MSLCU25 new

More Views

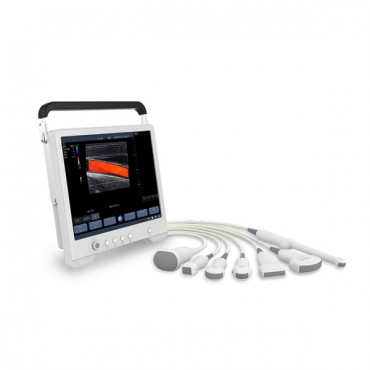

Full-Screen Input Color Ultrasound Equipment MSLCU25

Be the first to review this product

As Professional Color Ultrasound Machine manufacturer, Guangzhou Medsinglong Medical Equipment Co., Ltd.supply Cheap Color Doppler Ultrasound Machine, MSLCU25 included.


FOB Price: US $ 4,635-6,100 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Welcome select MSL, As Professional Color Ultrasound Machine manufacturer, Guangzhou Medsinglong Medical Equipment Co., Ltd. supply Cheap Color Ultrasound for sale, MSL Color Doppler Ultrasound Machine MSLCU25 included. And we are ready serve you Specialized Medical Ultrasound machines. Latest new Ultrasound machines, Global Specialized Medical Equipment supplied for different ranges people in reality.
We have Ultrasound machines including: Trolly ultrasound machine, 3D & 4D ultrasound machine, Portable and Handheld Ultrasound Machines, Home Ultrasound Machine, Veterinary Ultrasound, Color Ultrasound Machine and Digital Ultrasound Machines in differ functions for different person.



Quick Details-- MSLCU25

Full-screen Keyboard Portable Color Ultrasound equipment MSLCU25 for high demands
Enabled touch screen color doppler ultrasound
High clear Diagnostic Imaging
Applied in Aesthetics Equipment



Technical Specification

Mode:  B, M, 2B, B/ M, 4B, C, PW, Power, DirPower, THI
Gray sacle:  256
Display:  15" LCD monitor
Touchscreen:  Full Touchscreen
Transducer frequency:  2 - 11 Mhz
Digital technology: Wide-angle imaging
Panoramic focusing technology
Compatible with high and low speed blood
Rolling M technology
Panoramic imaging
Frequency composite
Space compound
Real-time Dynamic Aperture
Tissue Harmonic Imaging
Scanning depth:  220 mm



MSLCU25 Standard Configurations

color main unit
15" LCD with high resolution: 1024 * 768
Touchscreen
Two USB ports
One s-video out port
One networking port
One power inlet
One convex probe (3.5M R60)
Three transducer connectors
Plenty of measurement & calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
Wide use Protable color doppler USG/ MSLCU25 color doppler Probe



Functions

Design in Smart full touch screen with Portable Color Ultrasound MSLCU25

Cine-loop:  341 frame cine loop memory
USB ports:  2
Zoom:  Pan zoom for the active image
Amplification:  10 times
THI:  Tissue Harmonic Imaging
Qopt:  One-key Optimize
Multi language:  Supported
DICOM:  DICOM3.0
Print:  Report print for text & graph & image



Measurement & Calculations

B mode:  Distance, angle, area, volume, trace length; distance ratio, area ratio, histogram;
M mode:  Distance, time, slope, Heart Rate;
Software packages:  Abdomen, obstetric, Gynecology, Cadiac, Neural and Small Parts



Imaging Processing

Pre-processing:  Cloud processing technology
Fine blood flow imaging, high sensitive
8-segment TGC
Gain
Dynamic range
Persistence
M Soften
Noise suppression
Post-processing: Image enhancement
Gray-scale Map
Pseudo Color Map
Tissue Specific Imaging
Interface to turn 180°
Left/ right reverse
Up/ down reverse



Others Information

Transducer connector:  3 active transducer connector ports
Peripheral ports:  Video, 2 USB ports, 1 networking port, 1 power inlet
Power supply:  100-240V ~ 50 / 60Hz < 100VA
Dimensions ( main unit ) :  358mm ( W ) * 366mm ( L ) * 65mm ( H )
Packing dimensions :  415mm ( W ) * 435mm ( L ) * 140mm ( H )
Net weight:   About 3.0 kg
Gross weight:   About 4.5 kg



Multi-frequency probes

3.5 MHz convex probe ( R60 )
Application:
Abdomen, GYN, OB

5.0 MHz micro-convex probe ( R20 )
Application:
Infant Cardiac, Infant Abdomen

6.5 MHz trans vaginal probe ( R13 )
Application:
Vaginal

6.5 MHz micro-convex probe ( R15 )
Application:
Infant Cardiac, Infant Abdomen

7.5 MHz linear probe ( L40 )
Application:
Vascular, Small Parts



9. Optional Configurations

9.1 Probes

3.5 MHz convex probe ( R60 )
7.5 MHz linear probe ( L40 )
6.5 MHz trans vaginal / trans rectal probe ( R13 )
5.0 MHz micro-convex probe ( R20 )
6.5 MHz micro-convex probe ( R15 )

9.2 Power supply

Built-in Lithium battery power supply system





Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
