Enhanced 3D Portable Ultrasound Equipment MSLPU15 new

More Views

Enhanced 3D Portable Ultrasound Equipment MSLPU15

Be the first to review this product

Brand New Enhanced 3D Ultrasound Equipment MSLPU15, Portable Human Use Medical Ultrasound Equipment, be used widely in vet animals like Cattle and Horse as well.


FOB Price: US $ 992-2,200 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Feature:

* Use computer of user's, lost cost to get ultrasound scanner
* Small and light
* PC based, powerful function, large volume storage
* Full digital, clear image
* 3D image function (option)
* Silica gel waterproof ultrasound keyboard (option)
* Print by computer's USB laser/ inkjet printers
* Can work with external battery (option)
* Can set to English, French, German, Russian, Spanish and other languages



 Specification:

* Operation system:    windows XP (Best) or windows 7
D- Maximum Scanning Depth:    max. 250mm
* Multi- frequency:     5 segment frequencies
Zoom:    10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5,4.0, 4.5, 5.0, 5.5, 6.0
* Image gray scale:   256 level gray scale
Cine Loop:    max. 1024 frames
Scann mode:    B, 2B, B/M, M, 4B, 9B, ZOOM  (Real- time zoom on B mode)
* Image processing:    Pre- processing, after- processing, dynamic range, frame rate, line average, edge;
                                       enhancement, Black/ White inversion;   Gray scale adjustment, contrast, brightness, γ revision.

Measurement and calculation (human):

B mode:   distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode:   heart rate, time, distance, slope and stenosis;
Gynecology measurement:   Uterus, cervix, endometrium, L/ R ovary;
Obstetric:   gestation age, fetal weight, AFI;
Cardiology:   LV, LV function, LVPW, RV AWT;
Urology:   transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts:   optic, thyroid, jaw and face.

Measurement and calculation (veterinary):

Cattle:   BPD, CRL, TD;    * Horse: GA;     * Dog: GS;   Cat: HD, BD;     *  Sheep: BPD, CRL, TD
*  Image store:   by computer hardisk or USB disk
*  Print: by USB laser/inkjet printers with computer
*  DICOM3.0, medical digital imaging and communication
*  3D image function (function):   can get rebuilt 3D image by any probe
*  Dimension:   230mm × 200mm × 64mm
*  Weight:   with one probe around 1.2kg
*  Work time by battery (optional):   about 3 hours
*  Probe Connector:   2

Standard Configuration:

Ultrasound Box, USB connect cable, Convex probe (R60, 3.5 MHz), Power adapter, CD with ultrasound software, Manual.

Optional:

Linear, Trans-vaginal, Micro-convex, Rectal Probe;   Ultrasound keyboard;  Computer;  Battery.

Instructions:

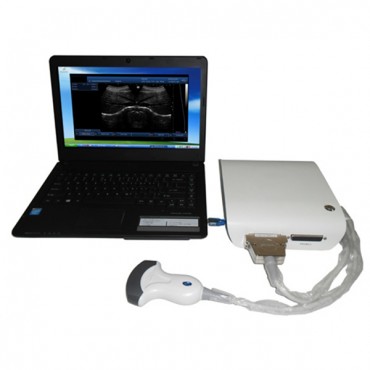

※  MSLPU15 Ultrasound Box is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.

※  The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the "Space" key can be defined as "Freeze" button, the "+" and "-" can set to value increase and decrease, all by your define.
