Doppler Arterial Vascular Doppler Portable Vascular MSL520T

More Views

Doppler Arterial Vascular Doppler Portable Vascular MSL520T

Be the first to review this product

Detect the blood stream status of arterial/venous by 8.0MHz, detect the blood flow average velocity,
and detect the result of finger/toes and part of body's vein anatomies operation.
FOB Price: US $ 100-737 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Unidirectional Vascular MSL520T Feature:

Detect the blood stream status of arterial/venous by 8.0MHz, detect the blood flow average velocity,
and detect the result of finger/toes and part of body's vein anatomies operation.
Detect the blood flow average velocity, detect the result of fingers, toes and part of body's vein
anatomies operation; It can be used to listen the temporo-mandibular joints (They become noisy
when they start to brake because of the bite problems), assist doctor to check the conditions of the
joints and predict the result of treatment.

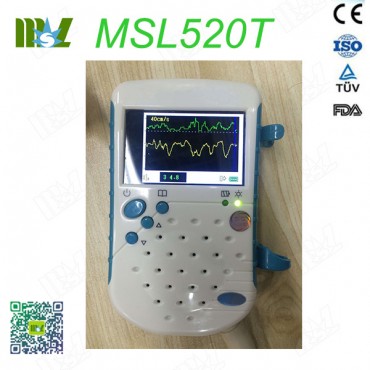

MSL520T with large color LCD,128 × 96 dots, display average velocity, waveform , probe frequency ,
time, volume and battery.
MSL520T can display unidirectional blood flow. (option: bidirectional blood flow )
Built-in ARM microprocessor & real-time displays blood flow velocity waveform;
Choose menu by pressing keys, store 50 curves;
High-speed USB port, can be connected directly to computer to analyze, store, and print the waveform.
Automatic power off, special USB port
Analyze the curve and data by V-LINK software
Detect the pulse rate and show PR simultaneously (option)
PPG probe ( for option)
software (for option)



Doppler Arterial Vascular Doppler Portable Bidirection MSL520T Specification:

Ultrasonic frequency: 8.0MHz±10%
Battery: 7.4V/900mAhrechargeable Lithium
Input voltage: DC 9V 1000mA
Doppler frequency: 100--7000Hz
Working temperature: 10-40℃
Humidity: ≤80%
Atmospheric pressure: 86--106kPa


Normative collocation:
charger, 60 g Gel, Gallus, portable soft handbag. ( Option : 5.0 MHz, earphone).


Packing List:


Model

Pakage QTY

Weight/Carton

Outer size

MSL520T

6 PCS/CTN

5KG

49*26*33CM





Ultrasonic frequency: 8.0MHz±10%
Battery: 7.4V/900mAhrechargeable Lithium
Input voltage: DC 9V 1000mA
Doppler frequency: 100--7000Hz
Working temperature: 10-40℃
Humidity: ≤80%
Atmospheric pressure: 86--106kPa

Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
