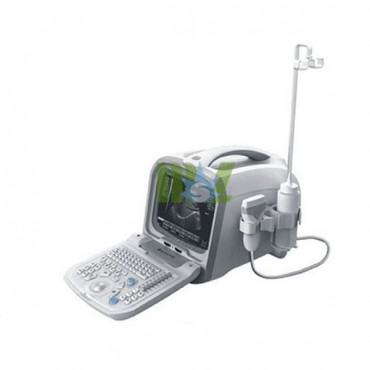

Cheap High Quality Portable & Full Digital Human Ultrasound Machine MSLPU10

More Views

Cheap High Quality Portable & Full Digital Human Ultrasound Machine MSLPU10

Be the first to review this product

Our high quality Portable full Digital human ultrasound machine, Portable human ultrasound machine and full digital ultrasound machine MSLPU10 for you.

FOB Price: US $ 2,150 - 3,500 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Features:

10.4" high resolution color LCD, high brightness, high contrast, wide visual, LED backlight, image clear and exquisite.
Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
Abundant software:Abdomen, Obstetric, Gynecology, Cardiac, Urological and other part measurement.
Back-lit silica gel keyboard, photoelectric trackball and encoder, easy to operate.
28 grades depth adjustment under full visual field, maximum display depth is 245mm.
Eight pseudo colors (incl.B/W).
100 frames permanent image storage, without loss of image when power off.
256 frames cine loop, movie clips save and play back available.
250GB internal hard disk, save mass images, reports, movie clips, etc.
Two USB ports, support large capacity U disk (support document management/software upgrades/one-key storage), and laser
printer directly print various images and reports.
DICOM3.0 network port, realizing network transmission easily.
Adopt AC and DC to supply power, with lithium battery and battery management module, battery support 3 hours working
time, supply excellent solution for examining patients at home and outdoors emergency treatment.

Specifications

Parameter:
Adopt ARM9 Embedded Control Systems, FPGA signal processing systems and specially selected ultrasonic hardware system,
making the machine safer and more reliable.
10.4" high resolution color LCD, high brightness, high contrast, wide visual, LED backlight, image clear and exquisite.
Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
Double probe sockets, automatically identify the probe, support several optional probes.
Body mark: 64 body marks with probe position.
Display mode: B (B-mode Ultrasound Imaging), 2B, 4B, B/ M, M, total 5 kinds.
28 grades depth adjustment, maximum display depth is 245mm.
Gain range: 0~127dB.
Dynamic range: 27~100dB.
Gray: 256.
Intelligent TGC control: 8 segments.
Acoustic power: 16 grades.
Frame frequency:30 frames/second.
Pseudo-color: 8 kinds (incl. B/W).
Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss of image when power off.
Build-in hard disk: Build-in 250GB internal disk D, save mass images, reports, movie clips, etc.
Cine loop: access 256 cine segments, play back.
Puncture guiding function(2 guiding lines,angle and position adjustable).
General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
Obstetric measurement and analysis: 15 kinds of obstetric tables, several GA measurement, amniotic fluid index ,fetal
growth curve and OB report.
Cardiac measurement and analysis: M general measurement and B general measurement software, and cardiac report.
Gynecology measurement and analysis: gynecology general measurement and gynecology report.
Urology measurement and analysis: residual urine volume, prostate volume, and urology report.
Two USB ports support large capacity U disk (support document management/software upgrades/one-key storage), and laser
printer directly print various images and reports.
Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
DICOM3.0 network port,realizing network transmission easily.
Dual power supply system. Power:AC110/230V -15%~+10%(self-adaptation supply voltage ) 60/50Hz±1Hz.
Battery: Bulk(10Ah) lithium battery one piece, more than 180 minutes work.
Net weight:8.5kg.
Main unit size:400x186x385mm(length x width x height.

Standard
Main unit: 1 pc.
Double probe sockets, automatically identify probe.
3.5MHz multi-frequency abdomen convex probe: 1 pc.
Lithium battery: 1pc.

Options
Probe
7.5MHz multi-frequency high linear probe
6.5MHz multi-frequency trans-vaginal probe
3.5MHz multi-frequency micro-convex cardiac probe
5.0MHz multi-frequency micro-convex pediatrics probe
7.5MHz multi-frequency high linear rectal probe
Trolley
Video recorder (P93W-S)
Laser printer(Specified models:HP Laser Jet 1020,HP Laser Jet 1022,HP Laser Jet P1007,HP Laser Jet P1008)
Battery:RYLB-02

Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
