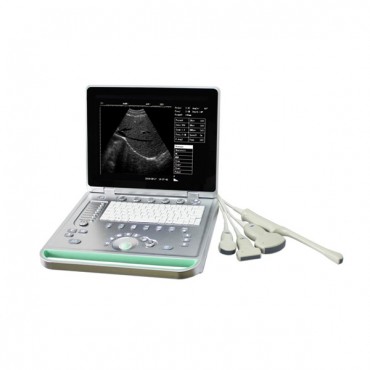

Our Led Screen Laptop Ultrasound Machine/ Portable Ultrasound Scanner MSLPU24, which is B ultrasound diagnostic system series with features of good quality, high clear image and cost-effective, a Complete Led Screen Laptop Ultrasound Machine as well and offered by Guangzhou Medsinglong Medical Equipment Co., Ltd. China. Of which only for US$ 1,300-2,000/ Set.
Following to help you get more informations:
MSLPU24 Quick Details
Cheap and more Cost-Effevtive portable ultrasound machine
1. 15 inch LCD screen
2. Probe: 3.5 mHz convex
3. full digital
4. laptop, pretty and light
1. Product Specifications
MSLPU24 LED screen Digital Ultrasound ultrasound machine & Trolley ultrasound scanner for sales
15 inch LCD screen
Full digital imaging technology, crystal-clear Image
Pretty and light
8 segment TGC
Broadband multi-frequency probes
2 probe connector
Silica gel backlight gravure laser keyboard
USB flash disk large volume image storage
Cine loop
Built-in battery (can work more than 5 hours)
High Cost-effective
2. Specification of Cheap & Effective portable ultrasound machine MSLPU24
* Display size: 15 inch LCD screen
* Working frequency: 2.0 MHz ~ 10 MHz
* Display mode: B, B + B, B + M, M, 4B
* Scanning range: Conve x array 60°~ 150°
* Amplification factor: 1.0, 1.2, 1.5, 2.0
* Gain control: 8 segments TGC and overall gain can be adjusted respectively
* Image processing: 8γ corrections, frame correlation, point correlation, line correlation, digital filtering
Digital edge enhancement and pseudo color processing, etc
* Image gray-scale: 256 levels
* Scanning line number: 512 lines/ frame
* Frame rate: 30 frames/ second
* Digital scanning conversion: 512 ~ 512 × 8 bits
* Memory: USB flash disk large volume image storage
* Conventional measurements: distance, perimeter, area, volume
* Obstetric measurement: gestational weeks ( BPD, GS, CRL, FL, HL, OFD, TTD, AC ).
Expected date of confinement and fetus weight, etc.
* Report function: auto make report
* Report function: auto make report
* Built-in battery capacity: can work more than 5 hours-Output interface: USB port, video.
* Overall size: 362 mm × 340 mm × 60 mm
* Total weight: 4 Kg ( with battery )
3. Standard configuration of the portable ultrasound
One host
One convex probe
One aluminum trunk
4. Optional accessories of the portable ultrasound
Transvaginal, linear, micro-convex probe;
Biopsy; Trolley; Printer.
