Sonoline B Professional Pocket Fetal Doppler MSLDSB

More Views

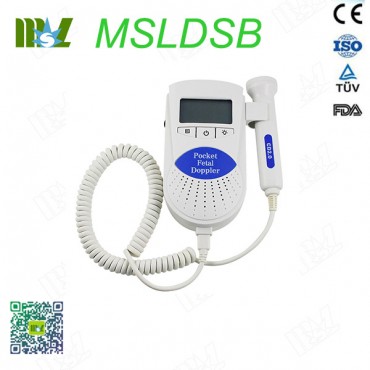

Sonoline B Professional Pocket Fetal Doppler MSLDSB

Be the first to review this product

Sonoline B Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check by pregnant woman.It contains components of ultrasonic signal transmitter and receiver

FOB Price: US $ 10-67 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Sonoline B Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check by pregnant woman.It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit etc.Sonoline B Pocket Fetal Doppler is a high performance model with (fetal heartrate) LCD digital display. It has 3 work modes: real-time FHR display mode, averaged FHR display mode, and manual mode .It has audio output and can be connected with earphone or recorder with audio input.



Best Sonoline B Professional Pocket Fetal Doppler MSLDSB Main Features
1.  Built-in speaker
2.  Three work modes: Real-time FHR display mode、averaged FHR displaymode and
manual mode
3.  LCD display
4.  Probe inspection
5.  Battery status indicator
6.  Backlight
7.  Auto Shut-OFF: After 1 minute no signal, power off automatically
8.  Suitable Using Range: Suitable for use after the 12th week of pregnancy
9.  Two pieces of standard 1.5V alkaline battery available which can work no less than 10
hours
10.  Output for headphones
11.  The probe can be changeable

baby Sonoline B Professional Pocket Fetal Doppler MSLDSB


price of Sonoline B Professional Pocket Fetal Doppler MSLDSB


MSL Sonoline B Professional Pocket Fetal Doppler MSLDSB Main performance

Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B applied part
LCD Display: 45 mm × 25 mm
FHR Measuring Range: 50 BPM ~ 240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ± 2 BPM
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply:TWO 1.5V(AA size) alkaline battery

new Sonoline B Professional Pocket Fetal Doppler MSLDSB

portable Sonoline B Professional Pocket Fetal Doppler MSLDSB

buy Sonoline B Professional Pocket Fetal Doppler MSLDSB

Probe:
Nominal Frequency: 2.0 MHz
Working Frequency: 2.0 MHz ± 10%
Overall Sensitivity : >100 dB
Negative Peak Sound Pressure : p_ < 0.5 MPa
Ultrasonic Output Intensity:I sata < 5 mW/cm2
Ultrasound Output Power: P < 10 mW
Working Mode: Continuous wave doppler
Effective Radiating Area of Transducer: 208 mm2 ± 15%


home Sonoline B Professional Pocket Fetal Doppler MSLDSB

Physical Characteristic
Dimension: (L) 135 mm × (W) 95mm × (H ) 35 mm
Weight: About 180 g (including batteries)

used Sonoline B Professional Pocket Fetal Doppler MSLDSB

advanced Sonoline B Professional Pocket Fetal Doppler MSLDSB


Qualification
Passed FDA and CE

cheap Sonoline B Professional Pocket Fetal Doppler MSLDSB

Best Sonoline B Professional Pocket Fetal Doppler MSLDSB

Accessories
Standard:2M straight probe
Option: 3M straight probe、 2M water proof probe、 3M water proof probe、 4/5/8M vascular straight probe
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B applied part
LCD Display: 45 mm × 25 mm
FHR Measuring Range: 50 BPM ~ 240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ± 2 BPM
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply:TWO 1.5V(AA size) alkaline battery
