Praised Widely Digital Ultrasound Diagnostic Equipment-MSLTU03 new

More Views

Praised Widely Digital Ultrasound Diagnostic Equipment-MSLTU03

Be the first to review this product

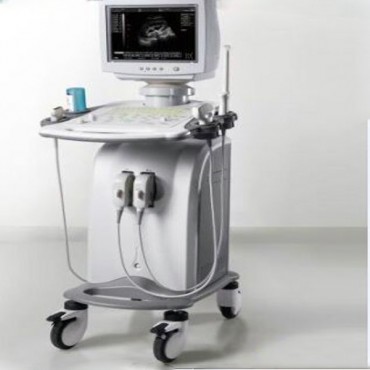

Praised Widely The Digital Ultrasound Diagnostic Equipment-MSLTU03, which is using black and white medical CRT display,80 element array double probe 156core interface,ultrasound main control system adopts embedded computer platform,and two probe connector support..

FOB Price: US $ 3,178-4,200 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Praised Widely The Digital Ultrasound Diagnostic Equipment- MSLTU03, which is using black and white medical CRT display,80 element array double probe 156core interface,ultrasound main control system adopts embedded computer platform,and two probe connector support......

Specification:

*  Cine playback; Large volume cine playback (automatically or manually); Split screen cine playback (4B,9B), B/ M,M mode cine playback  (automatically or manually).
*  Image management system:  Image archive, browse, compare, save, print, transport; Capable of storing up to hundreds of thousands of images, thousands of cine loops; Can slide show stored images in full screen.
*  Measurement and calculation: distance, ellipse measure circumference and area, trace measure circumference and area, ellipse measure surface area and volume; 4 measuring results; Ratio measurement, line narrow/width ratio, area narrow/width ratio, angle measurement, automatic calculation.
*  Assistant tools: piercing guide, histogram display, cross section display.
*  Menu interface, Real-time online help and guide system.
*  Full screen character input; multi-directional arrow indicator.
*  Tens of bodymarks selectable, intelligent changeable along with examining department.
*  Medical information database system, Patient information storage, search and management.
*  Formula setting and selective system for diagnosis measurement, selectable according to difference ethnic groups.
*  Automatic measurement software for obstetrics, gynecology, organ, heart, urology etc. department.
*  Multiple kinds of obstetric measurement reports, fetus physiological grading report, fetus growing curves.
*  Automatic report producing system for gynecology, organ, heart and urology department.
*  Optional 3D Module.

Two probe connector support, the following probes are supported:

× 3.5MHz R60/ R50 convex probe; broadband                × 2.0MHz-5.0MHz Multi-frequency;
× 7.5MHz L40 linear probe; broadband, 5.0MHz                × 10.0MHz Multi-frequency;
× 6.5MHz R10/ R13 Endo-cavity(Endo-vaginal) probe; broadband, 5.0MHz-8.0MHz Multi-frequency;
× Other kinds of probes are optional on order request (e.g. 3.5MHz R20 heart transducer; wide bandwidth frequency, 2.0MHz-5.0MHz Multi-frequency)

Beamformer:

Full Digital BeamFormer  (DBF)
Full digital beamformer   (DBF)
Real-time dynamic aperture  (RDA)
Dynamic receiving focus  (DRF)
