Bidirectional Vascular Doppler MSL620V

More Views

Bidirectional Vascular Doppler MSL620V

Be the first to review this product

620 V 620VP TFT LCD displays the wave of the instant blood flow average velocity and strength.
FOB Price: US $ 100-867 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Use Bidirectional Vascular Doppler MSL620V Features:

620 V 620VP TFT LCD displays the wave of the instant blood flow average velocity and strength. It  prints the monitoring blood flow curve simultaneously;
Detect the blood stream status of arterial/venous by 8MHz probe;
Detect the blood flow average velocity, detect the result of fingers/toes and part of body's vein anatomies operation;

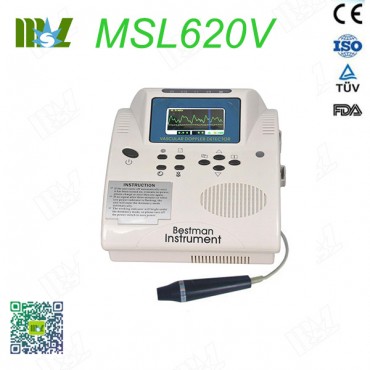

MSL620V 620VP(TFT) portable bidirectional vascular Doppler with large color LCD screen;
Built-in ARM microprocessor & real-time displays blood flow velocity waveform;
Can store 50 detected waveforms;
High-speed USB/RS -232 port, can be connected directly to computer to analyze, store, and print the waveform data;

Attention: MSL620V without thermal printer.
MSL620VP with thermal printer and can record the waveform of blood stream when it is connected with the power supply.

Cheap Bidirectional Vascular Doppler MSL620V

Cheap Bidirectional Vascular Doppler MSL620V Specification

Executive standard:
Classification: Safety classification: Model BF /Ⅱdevice/in side power classication.
Water-proof degree:Common device, without function of water-proof.
       Safety degree of flammable gas:  Unsuitable to use under the flammable gas.
Working mode: continuous work
Frequency range:Main unit :200±80~5000±1000HZ
                  Probe :350±80~2500±500HZ
External output:loudspeaker, single channel with earphone jack(optional)
Emissive waveform: sine wave
Ultrasonic frequency:5.0MHz±10% 、8.0MHz ±10%
Ultrasonic frequency average intensity: < 50mW/cm2
Velocity measure range:0~100 cm /s.
Test error:≤20%(relative error)
Overall sensitivity:> 100dB
Printing speed:40cm/min,60cm/min ,display synchronize with print.
Frequency mode display range:0.2 KHz~7.0 KHz
LCD Display:240*320dots TFT, LCD cursor indicates blood stream speed,
double display mode for the spectrum and velocity.
Power supply: AC/DC. Input AC power: 110-240V  50Hz/60Hz
                  Output DC power: 24V/1.5A ;
Power consume:<20W;built-in Ni-MH rechargeable battery:14.4V/1600 mAh.
Fuse:
for adapter:  3.15A,
for rechargeable battery:1.75A,
for charging circuit inside: 1.5A.
Power indication: blue LED indication
Charge indication:the charge indicator is yellow when charging and become green after full charge.
Alarm indication: the indicator light is red when the lack of battery.
Lack of paper indication: When the recorder is lack of paper, the indication light is red.
Outline dimension:210*220*105 (mm)
Net weight:1.9 Kg
Environment condition:
Temperature:+5℃ ~ +40℃ ,
Humidity:<80%,
Atmospheric pressure:86kPa ~ 106kPa.
Transport and storage environment:
Temperature:-10℃ ~ +55℃ ,
Humidity:<80%,
Atmospheric pressure:86kPa ~ 106kPa


Bidirectional Vascular Doppler MSL620V Options:

Advanced Bidirectional Vascular Doppler MSL620V



Use Bidirectional Vascular Doppler MSL620V

Executive standard:
Classification: Safety classification: Model BF /Ⅱdevice/in side power classication.
Water-proof degree:Common device, without function of water-proof.
       Safety degree of flammable gas:  Unsuitable to use under the flammable gas.
Working mode: continuous work
Frequency range:Main unit :200±80~5000±1000HZ
                  Probe :350±80~2500±500HZ
External output:loudspeaker, single channel with earphone jack(optional)
Emissive waveform: sine wave
Ultrasonic frequency:5.0MHz±10% 、8.0MHz ±10%
Ultrasonic frequency average intensity: < 50mW/cm2
Velocity measure range:0~100 cm /s.
Test error:≤20%(relative error)
Overall sensitivity:> 100dB
Printing speed:40cm/min,60cm/min ,display synchronize with print.
Frequency mode display range:0.2 KHz~7.0 KHz
LCD Display:240*320dots TFT, LCD cursor indicates blood stream speed,
double display mode for the spectrum and velocity.
Power supply: AC/DC. Input AC power: 110-240V  50Hz/60Hz
                  Output DC power: 24V/1.5A ;
Power consume:<20W;built-in Ni-MH rechargeable battery:14.4V/1600 mAh.
Fuse:
for adapter:  3.15A,
for rechargeable battery:1.75A,
for charging circuit inside: 1.5A.
Power indication: blue LED indication
Charge indication:the charge indicator is yellow when charging and become green after full charge.
Alarm indication: the indicator light is red when the lack of battery.
Lack of paper indication: When the recorder is lack of paper, the indication light is red.
Outline dimension:210*220*105 (mm)
Net weight:1.9 Kg
Environment condition:
Temperature:+5℃ ~ +40℃ ,
Humidity:<80%,
Atmospheric pressure:86kPa ~ 106kPa.
Transport and storage environment:
Temperature:-10℃ ~ +55℃ ,
Humidity:<80%,
Atmospheric pressure:86kPa ~ 106kPa
