Medical veterinary ultrasound machine-MSLVU09

More Views

Medical veterinary ultrasound machine-MSLVU09

Be the first to review this product

Normal measurement:distance,Perimeter,area (tracing method, ellipse method),volume,etc.
FOB Price: US $ 150- 10,000 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

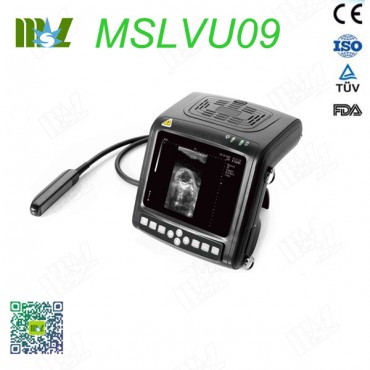

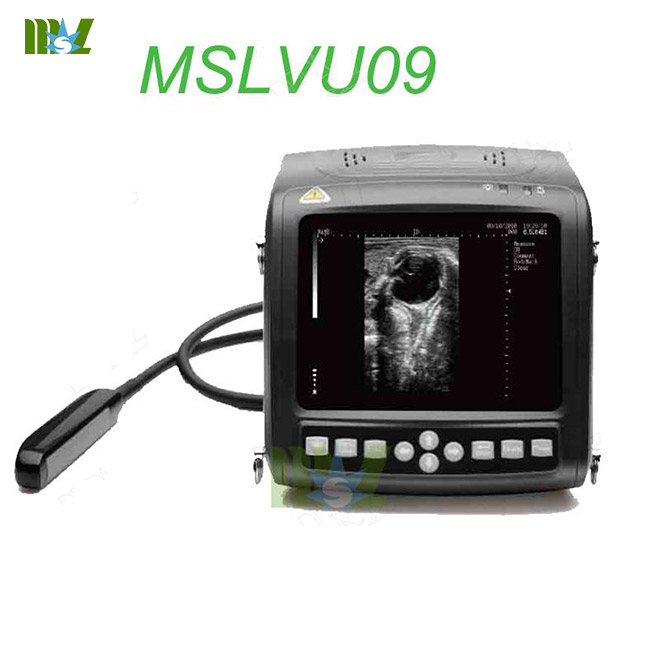

MSLVU09 medical full-digital veterinary ultrasound scanner

1.Probe element:80 elements

2.Scanning mode: electronic convex

MSL veterinary ultrasound machine-MSLVU09



MSL medical veterinary ultrasound machine-MSLVU09



MSL medical veterinary ultrasound machine-MSLVU09 for sale



MSL veterinary ultrasound machine-MSLVU09 Main specification

Screen display:5.7''high resolution color TFT LCD
Probe model:electronic convex and linear
Elements of probe:80



Standard probe:6.5MHz multi-frequency linear rectal probe; frequency range:4.5/5.5/6.5/7.5 MHz
Optional probe:4.0MHz multi-frequency convex rectal probe; frequency range:2.0/2.5/4.0/5.0 MHz
Optional probe:3.5MHz multi-frequency convex probe; frequency range:2.0/2.5/3.5/5.0 MHz
Optional probe: 6.5MHz multi-frequency intra-cavity probe 6.5 MHz;frequency range:4.5/5.5/6.5/7.5 MHz
Optional probe:7.5 multi-high frequency linear probe;frequency range:5.5/6.5/7.5/9.0 MHz
Optional probe:5.0MHz multi-micro convex probe; frequency range:4.5/5.0/6.5/7.5 MHz


Scanning angle: convex probe:60°,intra-cavity probe:135°
Body marks:1.bovine    2.dog    3.equine    4.cat    5.cadioloy,  total 22 kinds
Probe connector:1 pc,automatic identifying function
Receiving channel:≥16 digital beam former
Resolution:horizontal≤2mm,Vertical≤1mm
Dead Zone:≤5mm
Maxim scanning depth:≥190cm(according to the probe)
Geometric position accuracy:horizontal≤5%,Vertical≤5%



Scanning mode:B,2B,4B,B/M,M
Full field image with 8 lever adjustment(8 kinds Magnification)
Gain range:general gain continuously adjustment(0~127dB)
Dynamic range:27~90dB,video adjustable
4 kinds angles /width adjustment



Gray:256
Imaging technology:full digital beam forming,continuously dynamic adjustment focusing,Dynamic aperture
Image storage:100 frames permanent storage
Cine loop:256 frames
Intelligent TGC control: near-field and far-field adjustment.

veterinary ultrasound machine-MSLVU09 for sale



MSL medical veterinary ultrasound machine-MSLVU09 Imaging processing:

pre-processing(continuous dynamic focusing,dynamic aperture,dynamic filtering),

post-processing(4 gamma correction),correlation processing(4 levers),Left/right,

positive/negative, vertical, horizontal flip and B/W conversion, edge enhancement (4),etc..



With the image enhance the depth and the local amplification
Wire switch realize the freezing and unfreezing
Frame rate:30 frames/second.

MSL Best medical veterinary ultrasound machine-MSLVU09



MSL Best medical veterinary ultrasound machine-MSLVU09 for sale



MSL veterinary ultrasound machine-MSLVU09 for sale Measurement:

Normal measurement:distance,Perimeter,area (tracing method, ellipse method),volume,etc.
OB measurement:Cattle,dogs,horses,cats, goats,camels and sheep and pre-gestational age birth.
Heart of conventional measurements:depth,slope,heart rate,period
Report: OB report;
Character Tags:name,age,hospital name,and automatically display the date,time,probe type,probe

frequency,frame related to the number of the focus number,gain,dynamic range,etc.



Battery:Bulk(2400MAh),Large capacity lithium Battery, more than 200 minutes work
Weight of main unit:1.1Kg
Interface language:English



Optional mouse
Puncture and guide functionality(Puncture and guide wire 2 can be calibrated,angel and position are adjustable)
Positioning line
High-speed USB-A port: Supporting Large-capacity disk and mouse U
High-speed USB-Bport: could transfer image( “case report software V3.1”software)



Dual-mode output: PAL/NTSC

Adapter:40VA
Power:85V~242V,48~62Hz(Wide Power Supply ability)
With green energy-saving function
Built-in pseudo-color (eight kinds)
Print Output: Optional Video Recorder
Battery, battery Charger, apparatus, strap, bracket.



medical veterinary ultrasound machine-MSLVU09 for sale



Standard configuration

No.

Name

Quantity

1

Main Unit

1 unit

2

6.5MHz linear rectal probe

1 pc

3

Internal battery

2 pcs

4

Charger

1 unit

5

Neck belt

2 pcs

6

Wrist Bandage

1 pc

7

Bracket

1set

8

Handle freeze switch

1 set

9

The Oxhide Case

1 unit





Optional Configuration

No.

Name

1

7.5MHz High Frequency liner probe (Multi Frequency)

6.5MHz intra-cavity probe (multi frequency)

5.0MHz pediatrics micro-convex probe (multi frequency)

3.5MHz cardiac micro convex probe (Multi frequency)

4.0Mhz convex rectal Probe  (Multi frequency)

2

Video Print P93W-S

3

Mouse

4

Plastic Stuffing box

5

Software of case report process center

cheap medical veterinary ultrasound machine-MSLVU09



medical veterinary ultrasound machine-MSLVU09

Standard probe:6.5MHz multi-frequency linear rectal probe; frequency range:4.5/5.5/6.5/7.5 MHz
Optional probe:4.0MHz multi-frequency convex rectal probe; frequency range:2.0/2.5/4.0/5.0 MHz
Optional probe:3.5MHz multi-frequency convex probe; frequency range:2.0/2.5/3.5/5.0 MHz
Optional probe: 6.5MHz multi-frequency intra-cavity probe 6.5 MHz;frequency range:4.5/5.5/6.5/7.5 MHz
Optional probe:7.5 multi-high frequency linear probe;frequency range:5.5/6.5/7.5/9.0 MHz
Optional probe:5.0MHz multi-micro convex probe; frequency range:4.5/5.0/6.5/7.5 MHz


Scanning angle: convex probe:60°,intra-cavity probe:135°
Body marks:1.bovine    2.dog    3.equine    4.cat    5.cadioloy,  total 22 kinds
Probe connector:1 pc,automatic identifying function
Receiving channel:≥16 digital beam former
Resolution:horizontal≤2mm,Vertical≤1mm
Dead Zone:≤5mm
Maxim scanning depth:≥190cm(according to the probe)
Geometric position accuracy:horizontal≤5%,Vertical≤5%



Scanning mode:B,2B,4B,B/M,M
Full field image with 8 lever adjustment(8 kinds Magnification)
Gain range:general gain continuously adjustment(0~127dB)
Dynamic range:27~90dB,video adjustable
4 kinds angles /width adjustment



Gray:256
Imaging technology:full digital beam forming,continuously dynamic adjustment focusing,Dynamic aperture
Image storage:100 frames permanent storage
Cine loop:256 frames
Intelligent TGC control: near-field and far-field adjustment.

Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
