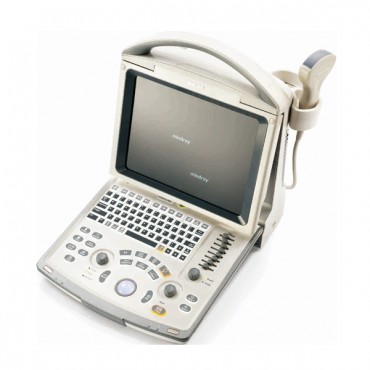

Portable & Digital Ultrasonic Diagnostic Imaging System DP-30
The DP-30 is designed portable and digital and ease-of-use machine for multi-specialty use like adults, pregnant women, pediatric patients and neonates.
Description
Main Unit
DP-30 Main Unit
12.1-inch LED Monitor
Two Transducer Connectors
THI (Tissue Harmonic Imaging)
Imaging modes: B/2B/4B/M/B+M
4GB SSD standard storage space & iStation™ Patient Information Management
8-segment TGC
iClear™ (Speckle Suppression Imaging)
iTouch™ (Auto Image Optimization)
Trapezoid Imaging/ExFOV
Measurement & calculation software packages
Voltage & Power Cord
UK Power Cord
Module (only with main unit)
320GB Hard Disk
Transducers
Convex array transducer, 35C50EA
Linear array transducer, 75L38EA
Endocavity convex array transducer, 65EC10EA
Intended Use
* CE Region: It is intended for use in gynecology, obstetrics, abdominal, pediatric, small
organ, cephalic, transcranial, musculo-skeletal, cardiac, vascular, urology, orthopedics and
nerve exams.
* FDA Region: It is intended for use in fetal,abdominal, pediatric, small organ (breast,
thyroid, testes), neonatal cephalic, adult cephalic, trans-rectal, trans-vaginal, musculo-
skeletal (conventional, superficial), cardiac (adult, pediatric), peripheral vascular and
urology exams.
General Specification
Dimensions and Weight
* Depth: 161mm (6.34 inch)
* Width: 290mm (11.42 inch)
* Height: 354mm (13.94 inch)
* Net Weight: 5.3kg (dual-probe sockets, without
battery or hard disk)
Electrical Power
Input power
* Voltage: 100-240V~
* Frequency: 50/ 60Hz
* Input current: 1.0- 0.5A
Battery
* Lithium-ion Battery Pack: 11.1V , 4800mAh
* Charge time: < 3 hours (connected on AC power supply, with the system powered off)
* Endurance time: > 100 min
Boot time
* Boot time: ≤60s
Operating Environment
Ambient temperature: 0° C ~ 40° C
Relative humidity: 30% ~ 85% (no condensation)
Atmospheric pressure: 700 hPa ~ 1060 hPa
Storage & Transportation Environment
Ambient temperature: -20° C ~ 55° C
Relative humidity: 30% ~ 95% (no condensation)
Atmospheric pressure: 700 hPa ~ 1060 hPa
Probe
Probe Types
* Convex array
* Linear array
Scanning Methods
* Electronic convex with extend FOV
* Electronic linear with slant scanning and trapezoid
Probe Model
* 35C50EA Convex
* 35C20EA Convex
* 65C15EA Micro-Convex
* 75L38EA Linear
* 75L53EA Linear
* 10L24EA Linear
Exam Mode
* Adult ABD
* ABD-Difficult
* Ped-ABD
* GYN
* OB1
* OB2/3
* Urology
* Prostate
* Vascular
* Thyroid
* Breast
* Testicle
* MSK
* General Nerve
* Superficial
* Orthopediac
* Cardiac
* EM FAST
Imaging Mode
* B-Mode
* Tissue Harmonic Imaging
* Slant scanning for linear probes (2D Steer)
* Trapezoid Imaging for Linear Probe
* ExFOV Imaging (Extended FOV for Convex Probe)
* M -Mode
* Display Mode:
* Dual live: B/M
* Time line display:top/bottom (1:1, 2:1, 1:2, Full)
* Single window
* Dual-split: B/M, B/B
* Quad-split: 4B
Imaging Features
* Multi-frequency probes for 2D imaging modes
* iClear (Speckle Suppression Imaging)
* iTouch (B/M): Auto Optimization
* TSI (Tissue Specific Imaging)
* iZoom (Full Screen View)
* Spot Zoom and Pan Zoom
