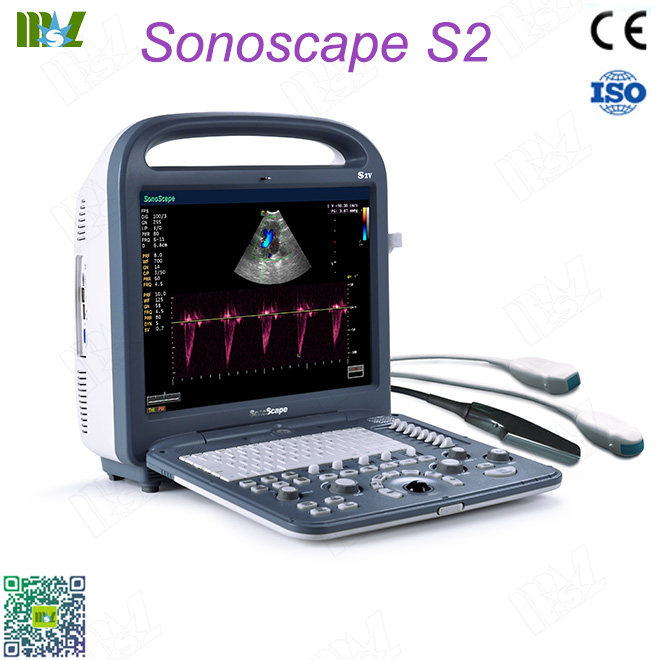

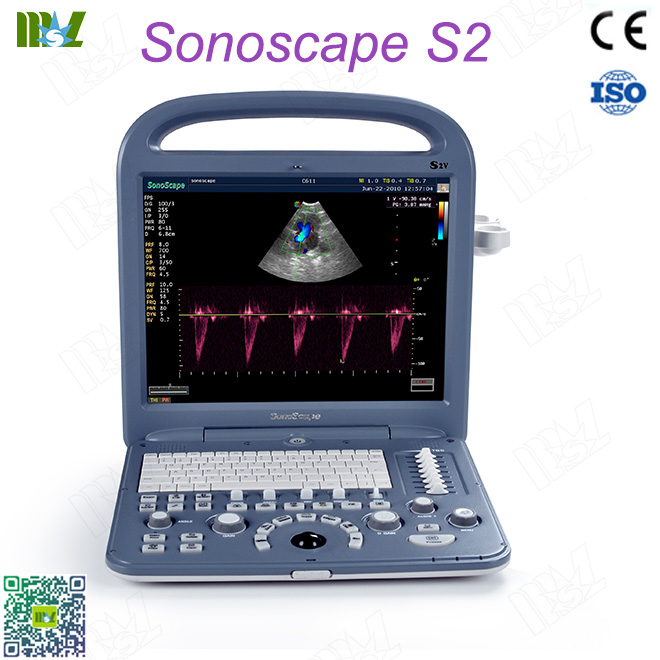

S2 main unit
15” High Resolution LCD color monitor
2 transducer connectors
Built-in Li-ion battery
USB 2.0/ Hard Disk 500 G
Factory direct sales ecografo sonoscape s2 General Specification
The high performances of the SonoScape
S2 stem from the advanced ultrasound
Doppler imaging technologies that include
full digital beam-former, wide dynamic range,
multi-beam processing, etc.
The ergonomic user-friendly design enables
user to customize the system according to
the specific application needs, and the
graphic exam icon assure you familiar with
the system in few minutes.
Factory direct sales ecografo sonoscape s2 Standard Configurations
Standard Hardware include:
S2 main unit
15” High Resolution LCD color monitor
2 transducer connectors
Built-in Li-ion battery
USB 2.0/ Hard Disk 500 G
Standard Software include:
Imaging modes: B/ 2B/ 4B/ M/ THI/ CFM/ DPI/ PW
Trapezoidal Imaging
Compound Imaging
Multi-beam technology
μ-Scan: 2D speckle reduction technology
Internal Workstation
DICOM 3.0: Transmission/Worklist/Print/MPPS/Storage/Commitment
Advanced software kits for Cardiology, Urology, Gynecology, Vascular, Small Part, Orthopedic
Stardard Configured Transducers:
128 elements linear array L741(Vascular, Small parts, MSK etc.), 5-12MHz/ 46mm
128 elements convex array C354(Abdominal, Obstetrics, Gynecology), 2-6MHz/ R50mm
Factory direct sales ecografo sonoscape s2 Optional Modules
Panoramic Imaging
Freehand 3D Imaging
Real time 3D(4D)
Triplex Mode
Steer M Mode
CW Mode
TDI Mode
ECG
Factory direct sales ecografo sonoscape s2 Transducers
72?elements?micro-convex?array?C322(Adbominal Biopsy),?2-6MHz/?R20mm
128 elements convex array C344(Abdominal, Obstetrics, Gynecology), 2-6MHz/ R40mm
128 elements micro-convex array C354(Abdominal, Obstetrics, Gynecology), 2-6MHz/ R50mm
128 elements convex array C542 (Abdominal, Pediatric), 3.5-6.5MHz/ R40mm
128 elements micro-convex array C611(Cardiac, Pediatric), 3-9MHz/ R11mm
128 elements linear array L741(Vascular, Small parts, MSK etc.), 5-12MHz/ 46mm
96 elements linear array 10I2 (Operative, Surgical), 4-12MHz/ 25mm
128 elements linear array 10L1 (Vascular, Small parts, MSK etc.), 5-15MHz/ 36mm
128 elements endovaginal 6V1 (Gynecology, Obstetrics, Urology), 3-9MHz/ R11mm
128 elements transrectal EC9-5 (Gynecology, Obstetrics, Urology), 4-10MHz/ R8mm
Phased array 2P1 (Cardiac, Transcranial), 1.5-4.5MHz
Phased array 5P1 (Cardiac, Pediatric), 3-8MHz
Volumetric convex array VC6-2 (Obstetrics, Gynecology, Abdominal), 2-6MHz/ R40mm
Factory direct sales ecografo sonoscape s2 Accessories
B/W Thermal Printer: Sony UP-X898MD
Color Thermal Printer: HP Color LaserJet Pro M252n
B/W Thermal Printer Paper: 1 roll
Color Thermal Printer Paper: 1box(80 pages)
Footswitch for freeze and print
Gel: 1 bottle

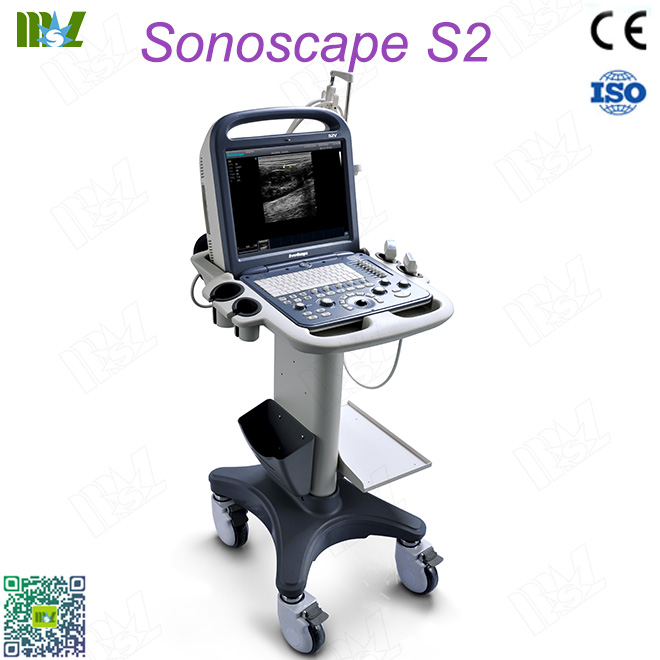

Mobile Trolley
Suitcase
External DVD-RW
Extended Transducer Sockets(two connectors)
Factory direct sales ecografo sonoscape s2 Biopsy Guides
Biopsy guide for C344 transducer
Biopsy guide for C354 transducer
Biopsy guide for C611 transducer
Biopsy guide for C322 transducer
Biopsy guide for L741 transducer
Biopsy guide for 10L1 transducer
Biopsy guide for 2P1 transducer
Biopsy guide for 6V1 transducer (reusable)
Biopsy guide for 6V1 transducer (disposable) (24 pieces/box)
Biopsy guide for EC9-5 transducer
