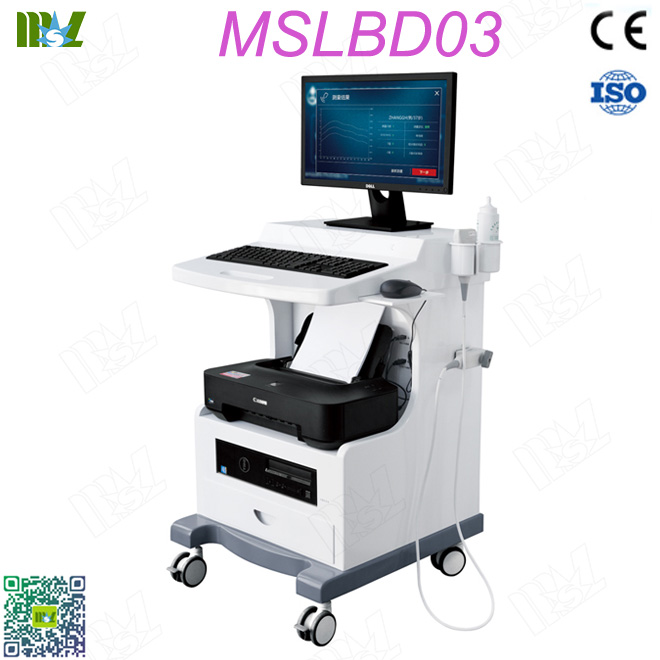

Ultrasound BMD Machine Bone Densitometer MSLBD03

Be the first to review this product

With BMD-A5 special intelligent real –time data analysis system, ultrasound bone densitometer MSLBD03 selects the adult or child databases according to the age automatically.
FOB Price: US $ 1 / Set|Get Latest Price
MOQ: 1 Set
Supply Ability: 1000 Sets per Month
Port: Guangzhou
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Escrow
Contact Suppliper

Ultrasound BMD Machine Bone Densitometer MSLBD03 bone density diagnosis

Ultrasound BMD Machine Bone Densitometer MSLBD03 Technical features: 1. Using the full dry technology, makes diagnostic more convenient. 2. The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception. 3. the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal 4. use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data 5. With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data. 6. With a special correction system, to correct the system error effectively, get more accurate measurement results. 7. multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals. 8. it with multi race clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100. 9. English menu 10. the first one pass the EMC test.

bmd machinebone ultrasound

1. Measurement parts: radius and Tibia 2. Measurement mode: double emission and double receiving 3. Measurement parameters: Speed of sound (SOS) 4. Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk). 5. Measurement Accuracy : ≤0.3% 6. Measurement Reproducibility: ≤0.3% 7. Measurement time: <25 seconds 8. Probe frequency : 1.20MHz 9. Date analysis : it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically . 10. Temperature control: Perspex sample with temperature instructions 11. Probe measurement navigation: this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy. 12. Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception. 13. Daily Calibration: automatic calibrating after power on. 14. All the people of the world. It measuring the people between the age Of 0 and 100,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-100 yeas old, only need to input the age and recognizing automatically . 15. Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample. 16. repot mode: color 17. Report format: supply A4, 16K ,B5 and more size report 18. Bone densitometer main unit: Drawing Aluminum mould manufacturing, it is exquisite and beautiful 19. Bone densitometer main unit weight>3.3 kgs 20. Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals. 21. Main Unit: the original Dell Rack business Computer. Signal processing and analysis are fast and accurate. 22. Computer configuration: original Dell business configuration: G3240, dual core, 4G memory, 500G hard disk, original Dell recorder., wireless mouse. (optional ) 23. Computer Monitor: 20’ color HD color LED monitor. (optional ) 24. Trolley(optional) 25. Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7 26. External medical special power supply, power>60W 27. Connect to the internet and provide remote services.

Since the beginning establishment of Guangzhou Medsinglong Medical Equipment Co., Ltd, we have been working in the medical field applications and product innovation. After several years of development, now our products are exported to over 110 countries, the United States, Germany, France, Australia, Turkey, Saudi Arabia, Malaysia and Nigeria included. Furthmore, our company has passed the ISO13485 international quality management system certification, CE certification and RoHS certification.

Nowadays, we sell three series ultrasound products including Human ultrasound, Vet animals ultrasound and Ophthalmology ultrasound. Wide ranges of ultrasound such as Notebook B ultrasound, Handheld, 4D ultrasound and other special type of ultrasound products, of which under unique proprietary core technology in the international leading level.

As a developing Medical Devices team, we pursue the goal of "More healthier in technology", and adhere to the idea of "Innovating technology, living healthier". Therefore, we have made a contribution for human health in committing and promoting advanced technologies products for many years.

We are looking forward to cooperating you from differ medical fields around the world, and we firmly believe that we will make you satisfied with our high quality products and good serves.









Welcome to ultrasoundmsl.com, If you have any demand in Ultrasound machine. Please feel free to contact sales@ultrasoundmsl.com

MSL Medical cooperate with DHL, FEDEX, UPS, EMS, TNT, etc. International shipping company, make your goods arrive destination safely and quickly.
